PRODUCT CATALOG

< >

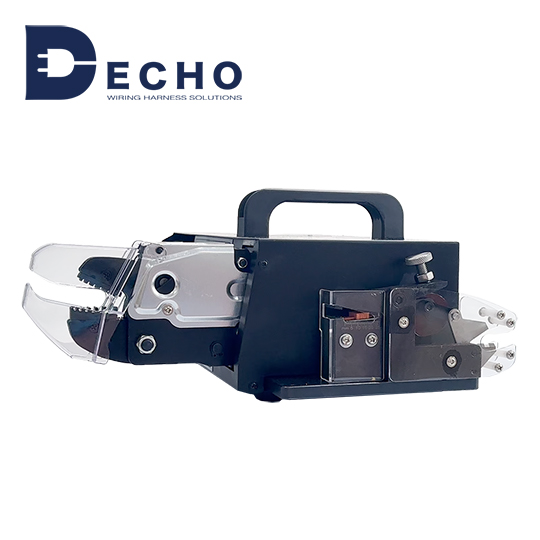

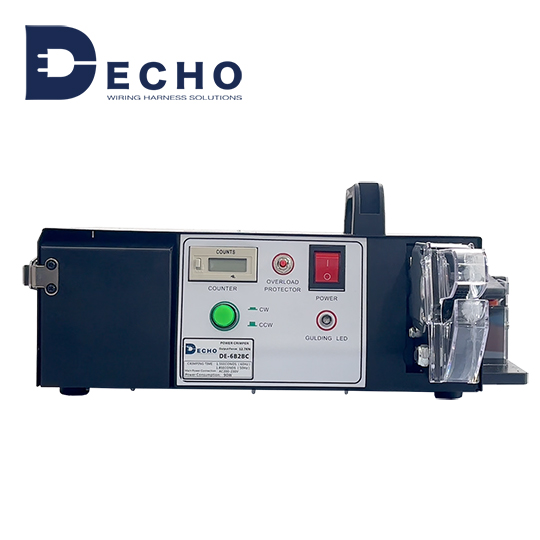

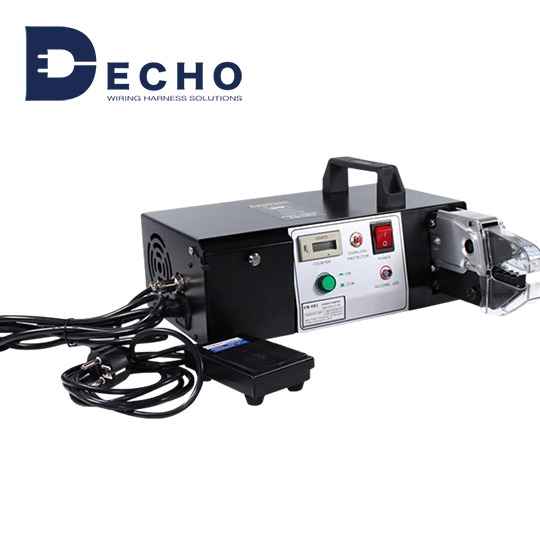

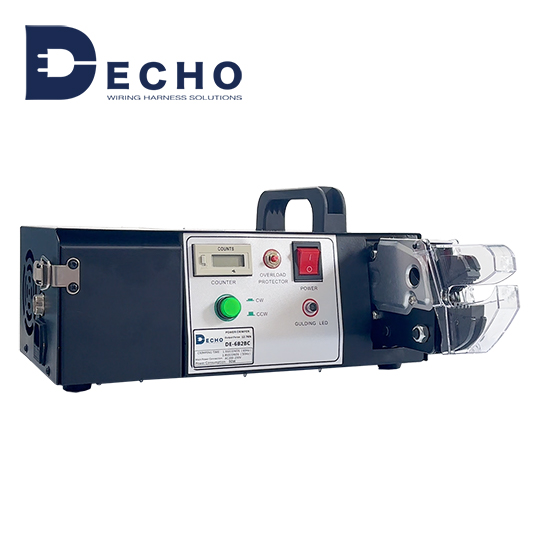

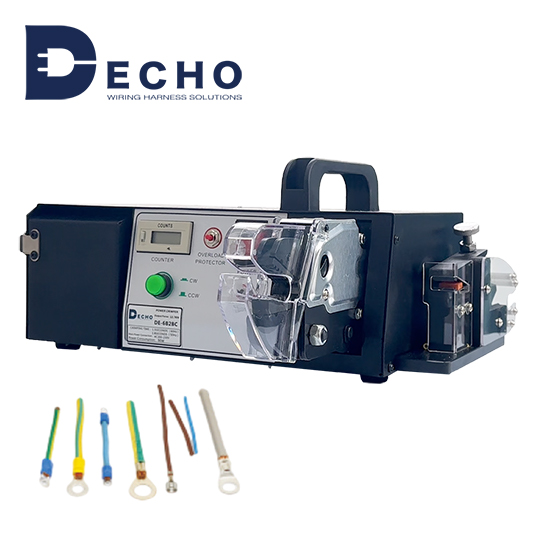

Electric Terminal Crimping Machine
Model: DE-6B2BC / DE-6B2
ENQUIRE NOW!
Mobile website:
Tel: +86 18968829747 (Whatsapp/Wechat)
E-mail: info@decho-wireharness.com

  • Model

    DE-6B2BC

    DE-6B2

    Stripping function

    Yes

    NO

    Crimping force

    12.7KN

    12.7KN

    Crimping size

    Non-insulation terminal ≤10mm2 Insulation ≤6mm2 Tubular terminal≤35mm2

    Non-insulation terminal ≤10mm2 Insulation ≤6mm2 Tubular terminal≤35mm2

    Crimping Speed

    1.5S(60HZ) ,1.8S(50HZ)

    1.5S(60HZ) ,1.8S(50HZ)

    Power supply:

    AC200-230V ,AC 100-125V

    AC200-230V ,AC 100-125V

    Power Rating

    90W

    90W

    Machine dimension

    325*265*150mm

    325*265*150mm

    Weight

    18kg

    18kg
